Fiat 500 Window Problems: Diagnosing & Fixing a Broken Left-Hand Side Window Regulator

Has the window in your Fiat 500 stopped working or has it dropped into the bottom of your door? Then this article is for you.

If you own a Fiat 500, you already know it’s a stylish and compact city car with loads of character. But like many modern vehicles, it’s not immune to the occasional fault. One common issue we see is a broken window regulator—especially on the left-hand side. This can be incredibly frustrating, especially when the weather doesn’t cooperate or you need to access a parking ticket machine.

In this blog, we’ll walk you through:

What a window regulator does
Why the regulator clip breaks
How to diagnose the problem
Step-by-step instructions to fix it

🔧 What Does a Window Regulator Do?

The window regulator is the mechanical assembly that raises and lowers your window glass when you press the switch. In the Fiat 500, the window regulator is an electric cable system—a fairly lightweight design that’s great for fuel economy, but not always the most robust when it comes to long-term durability.

💥 Why Does the Clip Break?

The most common failure point in the Fiat 500 window regulator is the plastic clip that secures the glass to the regulator mechanism.

Here’s why it breaks:

Plastic fatigue: Over time, repeated use weakens the plastic, especially if exposed to heat and sunlight.
Poor lubrication: Dry or dirty window channels put extra strain on the regulator, making the clip more likely to snap.
Glass binding: If the window track is misaligned or sticky, the glass might jam slightly, causing excessive tension on the clip.
Sudden force: Slamming doors or trying to move a jammed window can crack the clip or snap the cable from its mount.

🔍 Diagnosing the Problem

Symptoms of a broken left-side window regulator on a Fiat 500:

Window drops suddenly inside the door
Grinding or clicking noises when pressing the window switch
Window doesn’t move at all, but you can hear the motor
Window moves at an angle or gets stuck halfway

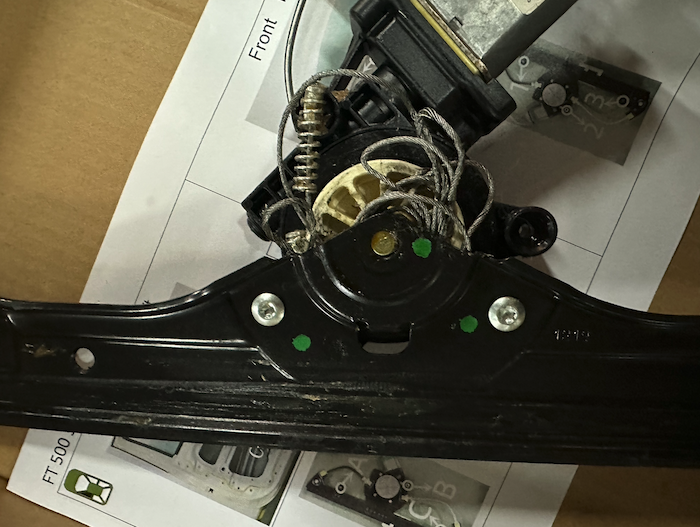

In the Fiat 500 window regulator, once the clip breaks, the entire mechanism often unwinds itself. At that point, it’s no longer economical to repair — it’s best to simply buy a new one and replace it.

🛠 How to Fix It (Step-by-Step)

Tools & parts you’ll need:

Replacement window regulator (with motor or without, depending on your car’s condition)
Screwdrivers (Philips and flathead)
Trim removal tool or butter knife (for clips)
Socket set (usually 10mm)
Safety gloves
Optional: silicone spray to lubricate the window channel

Step 1: Disconnect the Battery

Always start by disconnecting the battery to avoid electrical shorts or accidental motor activation.

Step 2: Remove the Door Panel

Remove the screws (usually hidden under rubber caps or trim pieces).
Gently pry off the door panel using a trim tool—work your way around to release all clips.
Disconnect the wiring harnesses for the window switch and speaker.

Step 3: Remove the Old Regulator

Carefully lower the glass by hand (if possible) and support it with tape or wedges.
Detach the broken clip from the glass.
Unbolt and remove the regulator assembly from inside the door.
Remove any broken pieces or tangled cable remnants.

Step 4: Install the New Regulator

Slide the new regulator into place and bolt it down.
Carefully reattach the glass to the new clip—ensure it’s properly seated.
Reconnect the motor wiring and test the window before reassembling.

Step 5: Reassemble the Door

Plug back in all connectors (switch, speaker, etc.).
Reattach the door panel and screws.
Reconnect the battery and test again to ensure everything works smoothly.

✅ Pro Tips

Use silicone spray on the window channels to reduce future friction.
Avoid slamming the door with the window halfway down.
If you’re replacing the regulator, consider getting an upgraded version and not the standard one.

🧰 Final Thoughts

Fixing a broken left-hand side window regulator on a Fiat 500 is a DIY job that’s very doable with the right tools and a bit of patience. While the plastic clip failure is frustrating, it’s also quite common and replaceable. If you’re in a pinch or not confident doing it yourself, your local mechanic or mobile technician can often replace the unit in under an hour.

Have you had this issue with your Fiat 500? Let us know in the comments or reach out if you need help sourcing parts or booking a repair.
